FOAM TAPE SLITTER
Request
Machine

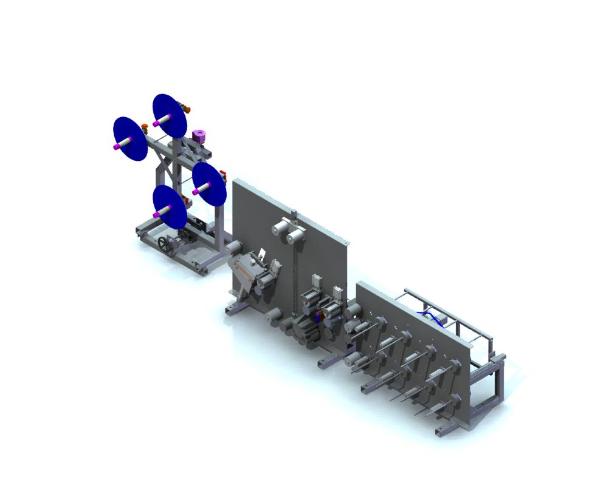

The foam tape slitter/winder was
a concept-to-finished-machine
project. The project required a
design with robust modular
assemblies. Other design
aspects included; economical
weldments for bases, multiple
axis servo motor drive
integration, pneumatic drive
integration, custom slitter knife
assembly, accumulator and
turret for continuous operation.
a concept-to-finished-machine
project. The project required a
design with robust modular
assemblies. Other design
aspects included; economical
weldments for bases, multiple
axis servo motor drive
integration, pneumatic drive
integration, custom slitter knife
assembly, accumulator and
turret for continuous operation.
TUBE CUTTER
ELECTRICAL
CONNECTOR
CONNECTOR

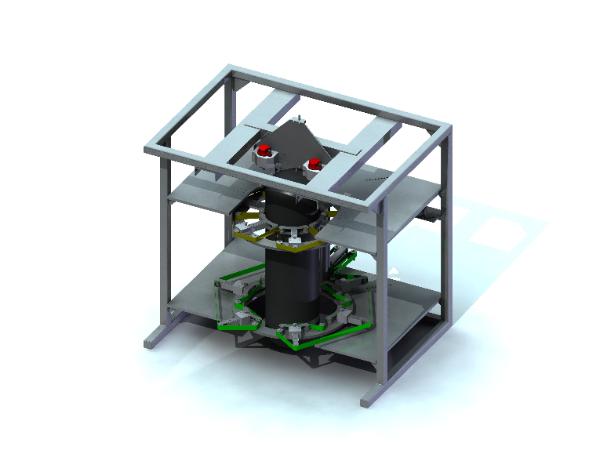

Custom specialty machine.
Automatically cuts large plastic tubes.
Automatically cuts large plastic tubes.
Concept
Customer needed to reproduce
electric connector assembly in low
volumes. Parts were redesigned to
make them friendly for low volume
production using rapid tooling
molding. Through redesign, mold
tooling cost was reduced from
$50,000 to $15,000
electric connector assembly in low
volumes. Parts were redesigned to
make them friendly for low volume
production using rapid tooling
molding. Through redesign, mold
tooling cost was reduced from
$50,000 to $15,000
Existing
Redesign
VOLUME COUNTING
CONTAINER
CONTAINER

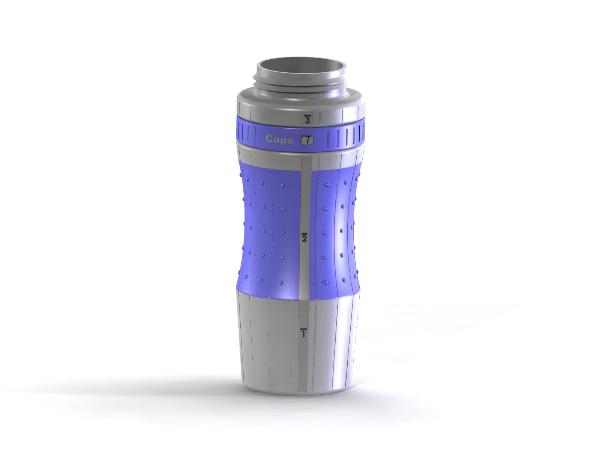

Prototype container
with sliding outer ring
to count consumed
volume.
with sliding outer ring
to count consumed
volume.

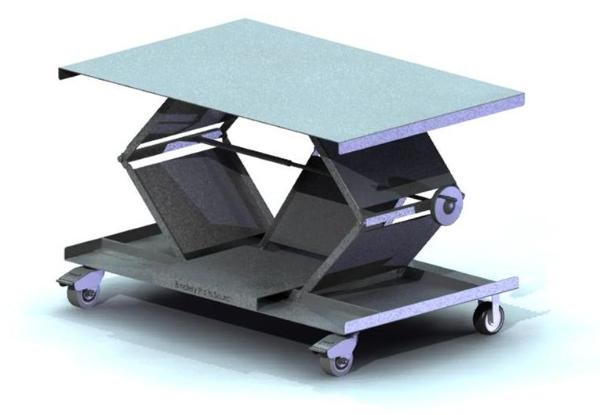

CUSTOM LIFT TABLE
Customer needed a low cost reproducible lift table. Sheet
metal design with a minimum number of unique parts.
metal design with a minimum number of unique parts.
